Top Features

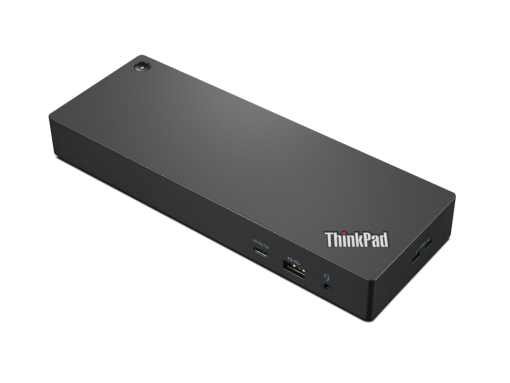

  • The ThinkPad Thunderbolt™ 4 Workstation Dock supports upto 230W PD
  • Single [email protected] or upto 4 [email protected] display support
  • silent firmware upgrades, vPro/AMT Pass through support, and
  • data transfer rates upto 40 Gbps



Physical Specifications:

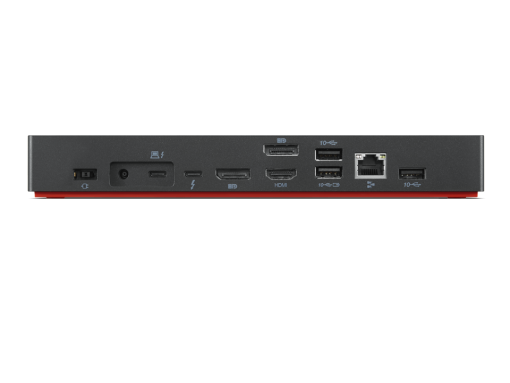

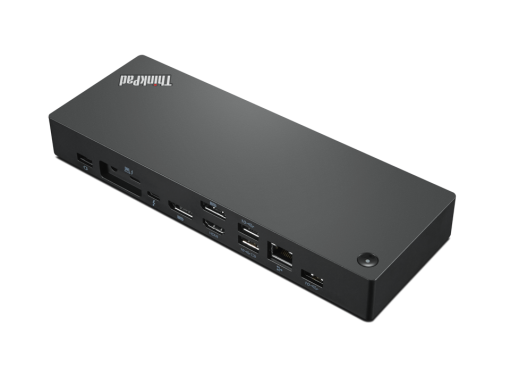

  • Thunderbolt Port:
    • One Thunderbolt Port – for Host connect
    • One Thunderbolt Port – for Device connect
  • Video Ports:
    • One HDMI 2.1
    • Two DisplayPort 1.4
  • USB Ports:
    • Four USB-A
    • One USB-C
  • Audio Ports: 1* 3.5mm Audio combo Jack
  • Ethernet: One Gigabit Ethernet
  • Physical Security Feature:
    • One NanoSaver lock slot
    • One MicroSaver lock slot
  • Max Number of External Monitors: 4
  • Dimensions:
    • Length: 220 mm (8.7 inches)
    • Depth: 80 mm (3.1 inches)
    • Height: 30 mm (1.2 inches)
  • Weight: 0.45Kg
  • Thunderbolt 4 Passive Split Cable length: 0.7 meters (27.5 inches)

Packaged Specifications:

  • Packaged Dimensions:
    • Length: 270 mm
    • Depth: 195 mm
    • Height: 85 mm
  • Packed Weight: 1.9 Kg

Electrical Specifications:

  • Charging Port: DC-IN
  • Input Power: 20V 15A
  • Power Delivery: Yes
  • Output Power: Max 230W
  • Power Button: Yes
  • Power Plug: Slim Tip

Operating Environment:

  • Minimum Operating Temperature: 0 celsius
  • Maximum Operating Temperature: 40 celsius
  • Minimum Relative Humidity (%): 5
  • Maximum Relative Humidity (%): 95

Hardware Requirement

  • Systems with USB-C/Thunderbolt port

Maximum Resolution Support and Refresh Rates

  • One at: 8K 30Hz Via HDMI 2.1
  • Four at: 4K 60 Hz
