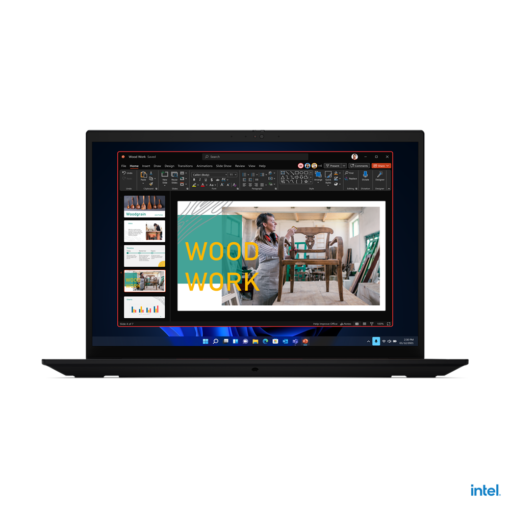

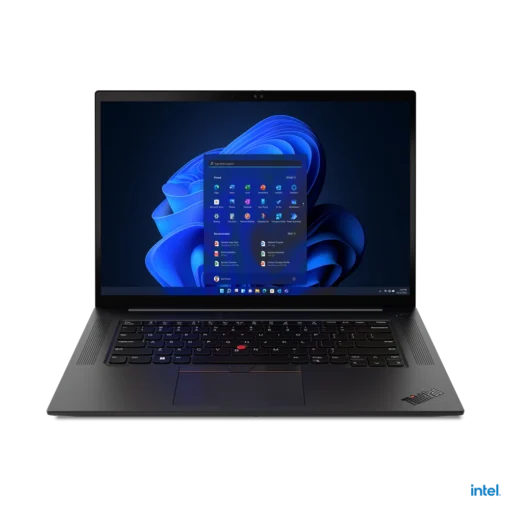

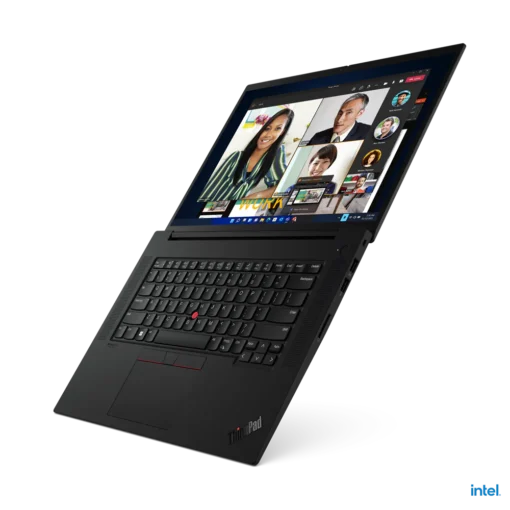

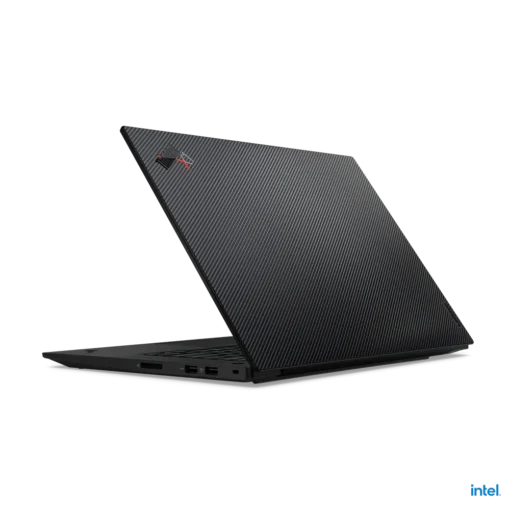

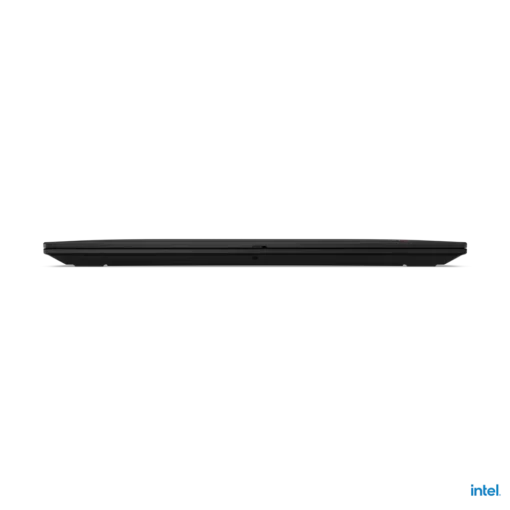

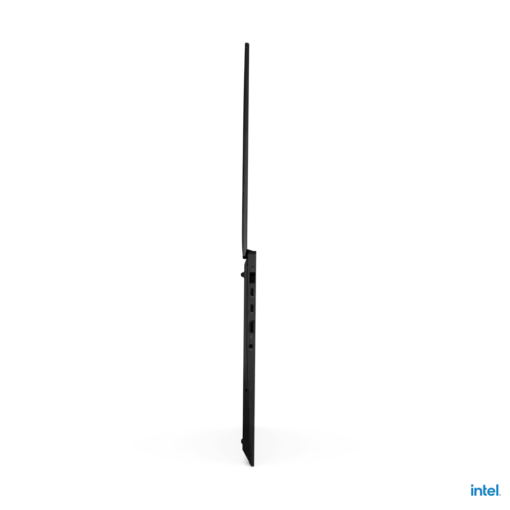

ThinkPad X1 Extreme Gen 5

Part Number : 21DE0025TX

PERFORMANCE
Processor
Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB
Graphics
NVIDIA GeForce RTX 3050 Ti 4GB GDDR6
Chipset
Intel SoC Platform
Memory
1x 32GB SO-DIMM DDR5-4800
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-4800
Storage
1TB SSD M.2 2280 PCIe 4.0×4 Performance NVMe Opal2
Storage Support
Models with RTX 3050 Ti graphics: up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 4TB • RAID 0/1 support
Storage Slot
Models with RTX 3050 Ti graphics: Two M.2 2280 PCIe 4.0 x4 slots
RAID Preset
None
Card Reader
SD Express 7.0 Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3306 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio Premium
Camera
FHD 1080p + IR Hybrid with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 90Wh
Power Adapter
170W Slim Tip (3-pin)
DESIGN
Display
16″ WQUXGA (3840×2400) IPS 600nits Anti-glare, 100% Adobe RGB, 60Hz, DisplayHDR 400, Dolby Vision
Touchscreen
None
Color Calibration
Factory Color Calibration
Keyboard
Backlit, Turkish
Case Color
Black, Weave
Case Material
Carbon Fiber (Top), Aluminium (Bottom)
Pen
No Support
Dimensions (WxDxH)
359.5 x 253.8 x 17.9 mm (14.15 x 9.99 x 0.7 inches)
Weight
Starting at 1.88 kg (4.14 lbs)
SOFTWARE
Operating System
Windows 11 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
No Onboard Ethernet
WLAN + Bluetooth
Intel AX211 Wi-Fi 6E, 2×2 + BT5.1
WWAN
None
SIM Card
None
NFC
NFC

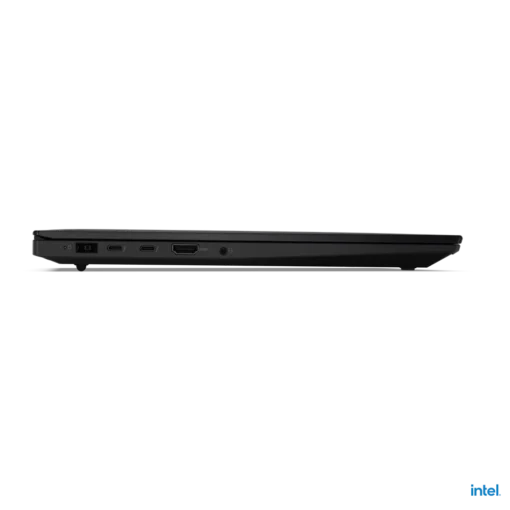

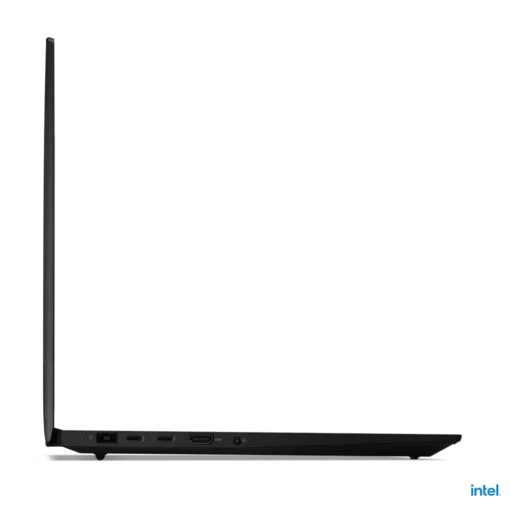

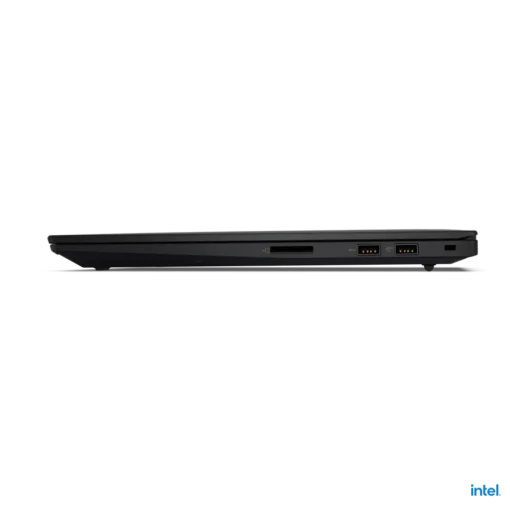

Standard Ports
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)
  • 1x HDMI, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Power connector
  • 1x SD Express 7.0 card reader
Optional Ports (configured)
None
Docking
Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Extreme Gen 5
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks
Kensington Nano Security Slot, 2.5 x 6 mm
Other Security
  • IR camera for Windows Hello
  • Camera privacy shutter
  • Glance by Mirametrix
  • Tile ready
MANAGEABILITY
System Management
Non-vPro
SERVICE
Base Warranty
3-year, Courier or Carry-in
Included Upgrade
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • EPEAT Gold
  • ENERGY STAR 8.0
  • ErP Lot 3
  • TCO Certified 9.0
  • RoHS compliant
Other Certifications
TÜV Rheinland Low Blue Light Method 2
Mil-Spec Test
MIL-STD-810H military test passed
