Açıklama

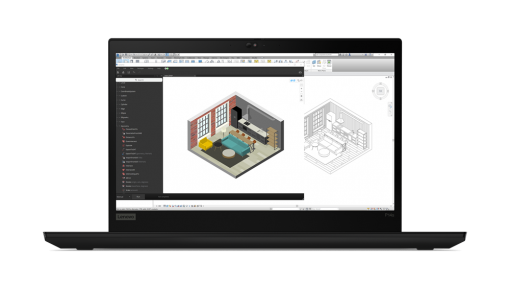

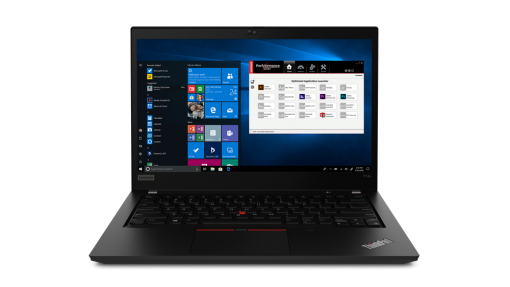

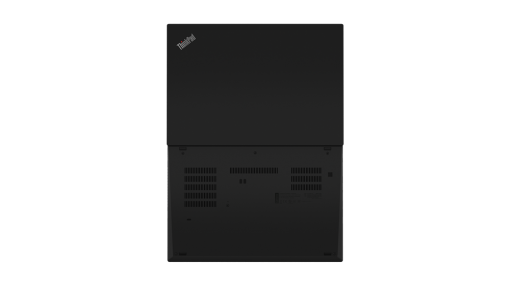

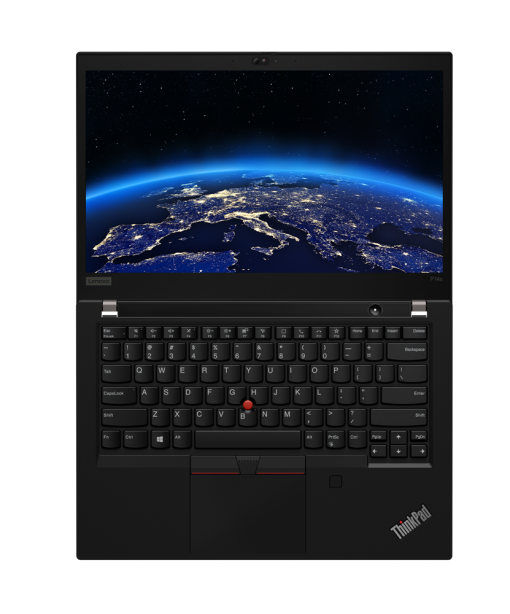

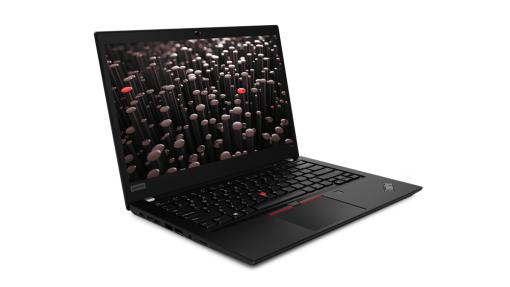

ThinkPad P14s Gen 1 (Intel)

Part Number : 20S40044TX

PERFORMANCE
Processor
Intel Core i7-10510U (4C / 8T, 1.8 / 4.9GHz, 8MB)
Graphics
NVIDIA Quadro P520 2GB GDDR5
Chipset
Intel SoC Platform
Memory
16GB Soldered DDR4-2666 non-ECC
Memory Slots
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory
Up to 48GB (16GB soldered + 32GB SO-DIMM) DDR4-2666
Storage
1TB SSD M.2 2280 PCIe NVMe Opal2
Storage Support
One drive, up to 2TB M.2 2280 SSD
Card Reader
MicroSD Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio
Camera
IR & 720p with ThinkShutter
Microphone
2x, Array
Battery
Integrated 50Wh
Max Battery Life
MobileMark 2014: 15.1 hr MobileMark 2018: 10.96 hr JEITA 2.0: 15.1 hr
Power Adapter
65W USB-C (3-pin)
DESIGN
Display
14″ FHD (1920×1080) Low Power IPS 400nits Anti-glare, 72% Gamut
Touchscreen
None
Color Calibrator
None

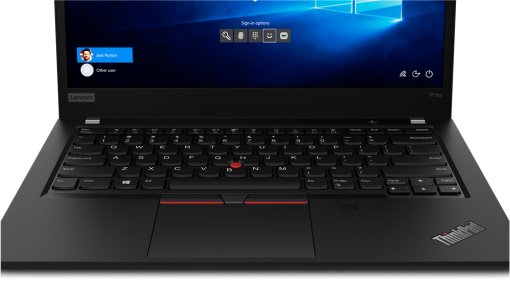

Keyboard
Backlit, Turkish
Case Color
Black
Case Material
PPS / 50% GF (Top), PA / 50% GF (Bottom)
Dimensions (WxDxH)
329 x 227 x 17.9 mm (12.95 x 8.94 x 0.70 inches)
Weight
1.49 kg (3.28 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.1
WWAN
WWAN Upgradable to 4G
SIM Card
None
NFC
None

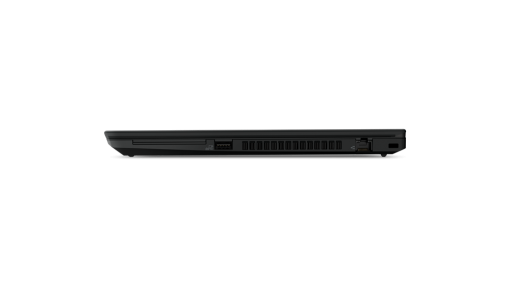

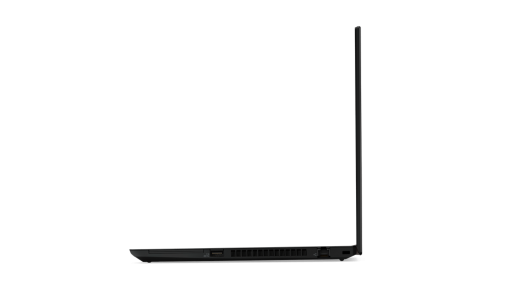

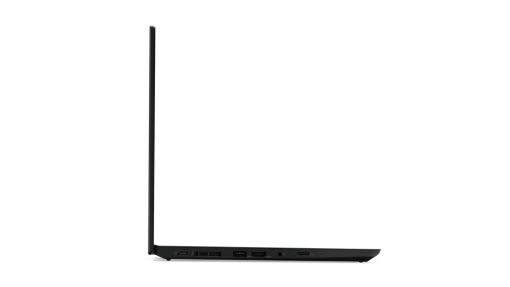

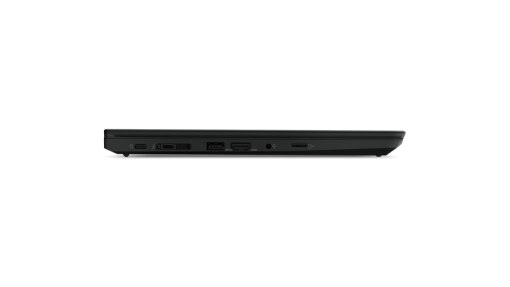

Standard Ports
  • 1x Side docking connector
  • 1x USB-C 3.2 Gen 1 (support data transfer, Power Delivery and DisplayPort 1.2)
  • 2x USB 3.2 Gen 1 (one Always On)
  • 1x Ethernet (RJ-45)
  • 1x HDMI 1.4b
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x microSD card reader
  • 2x USB-C 3.1 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort 1.2)
Optional Ports (configured)
  • 1x Smart card reader
  • 1x Nano-SIM card slot (WWAN model)
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
Smart Card Reader
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Security Slot
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
3Y Premier TP WS WHB (CPN) (5WS1B09494)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • EPEAT Gold
  • RoHS compliant
Mil-Spec Test
MIL-STD-810G military test passed
ISV Certifications
Please visit www.thinkworkstations.com/isv-certifications/
